Image Processing Now Available
We are excited to announce the completion of our image processing system project!
We can now incorporate “image capture” and “image analysis” in our ShiftWorx platform. The first system we installed has successfully processed over 1 million images in the first 3 days and continues to process around 300,000 images per 12 hour period.
With this new module, we can offer image data to help our customers determine quality, productivity and in some applications, empirically quantify “value adding” actions in ways they have never been able to before.
The next phase we have planned for this project is to include a locally-hosted web interface (hosted from the Xi) for custom data entry to be included with the daily log files.

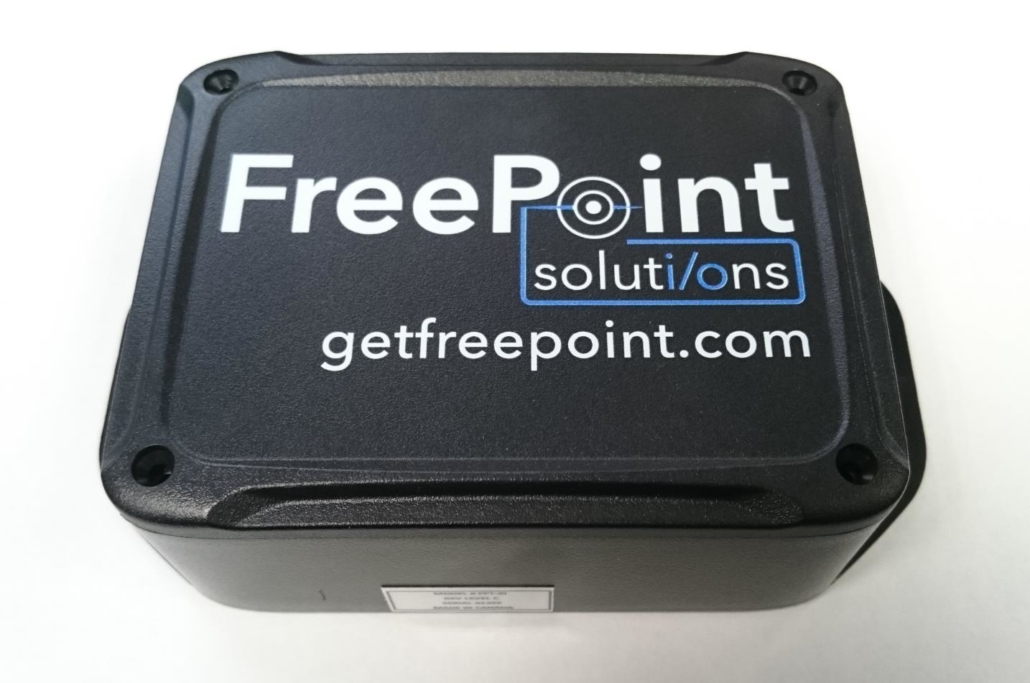

Computer vision (CV) system consists of up to 4 industrial USB cameras with moisture‐resistant lenses interfaced with a single FreePoint Xi Image Processing System. Cameras support compressed and RAW pixel formats with hardware triggering for instant image acquisition and download. The system is offered as a “bolt‐on” product that runs independently and in parallel with the customer’s existing industrial process. The FreePoint system supports colour and greyscale cameras with global shutter (no electronic/rolling shutter image distortion) at resolutions from 64×64 up to 1280×960 pixels. This CV system implementation operates continuously at 9 frames/second with real‐time image processing and data logging and was tested at up to 20 frames / second (hardware trigger mode).
FreePoint image processing module supports custom image analysis including (but not limited to) image segmentation, feature and shape detection / recognition, optical measurement (dimensions, surface area, etc.), colour and feature binning, noise rejection, format conversion, image and data logging and local/cloud‐based file hosting and data analytics.
Camera installation is as simple as a 1⁄4”‐20 bolt with appropriate straight or right‐angle mounting bracket. All systems come with trigger and data cables with support for 24VDC and 120/220VAC 60/50Hz power. Image processing system configuration and setup to be performed by a FreePoint technician same‐day.
For more information on our image processing capability or to request a demonstration, email firstname.lastname@example.org
